Selecting the right electric submersible pump is a critical step for ensuring reliable fluid handling in industries such as mining, oil and gas, municipal water management, and dredging. A key part of this selection process is understanding the pump curve, which provides valuable insights into how a pump will perform under specific flow and head conditions.
For procurement heads, engineering managers, and project contractors, proper interpretation of pump curves can significantly impact project efficiency, operational reliability, and total lifecycle costs. By selecting a pump that aligns with the system’s requirements, organizations can reduce energy consumption, extend equipment life, and achieve a stronger return on investment.
This guide will provide a step-by-step approach to pump curve analysis for electric submersible pumps, covering how to read the curves, determine system requirements, match the pump to the system curve, and avoid common selection mistakes. Whether deploying a pump for industrial dewatering, municipal drainage, or heavy-duty dredging, understanding pump curves ensures optimal performance and cost efficiency.
What Is a Pump Curve and Why Does It Matter for Electric Submersible Pumps
A pump curve is a graphical representation that shows how a pump will perform under varying conditions of flow and head. For an electric submersible pump, the pump curve is an essential tool that helps engineers, procurement heads, and project managers determine if a selected pump can meet the operational requirements of their system. Understanding this curve ensures that the pump will deliver the expected performance while operating efficiently and safely.
Pump curves are critical in electric submersible pump selection because they provide insights into flow rate, head pressure, power consumption, and efficiency. By studying the curve, decision-makers can identify the best operating point to maximize performance and extend the life of the pump. In industrial and municipal operations, this directly translates to lower energy costs, fewer unplanned shutdowns, and reduced maintenance expenses.
In real-world applications, an electric submersible water pump is often deployed in challenging environments like mining pits, oil and gas facilities, and municipal drainage systems. When a pump is selected without proper curve analysis, the risk of underperformance or premature failure increases. Accurate curve interpretation ensures the pump can handle varying flow demands and head pressures, delivering consistent results over time.
The electrical submersible pump curve also allows operators to predict how the pump will react to changes in system conditions. For example, if pipeline friction or elevation changes occur in a dewatering project, the curve provides a clear expectation of how the electric submersible pump will respond. This predictive capability is vital for project planning, budgeting, and minimizing operational risks.
Across sectors such as dredging, municipal water management, and heavy industry, using pump curves for selection and performance verification is considered best practice. Whether it is a small electric submersible water pump for flood control or a large electrical submersible pump for mining operations, analyzing the curve ensures that the equipment operates near its optimal efficiency point. This not only safeguards the investment but also enhances the overall return on investment for the project.
For procurement teams and engineering managers, the pump curve is more than a technical chart; it is a decision-making tool. It bridges the gap between theoretical pump capabilities and real-world operating conditions, enabling teams to select the electric submersible pump that will perform reliably under site-specific challenges. By leveraging this knowledge, industries can achieve consistent output, minimize energy waste, and maintain operational continuity.
Key Components of an Electric Submersible Pump Curve

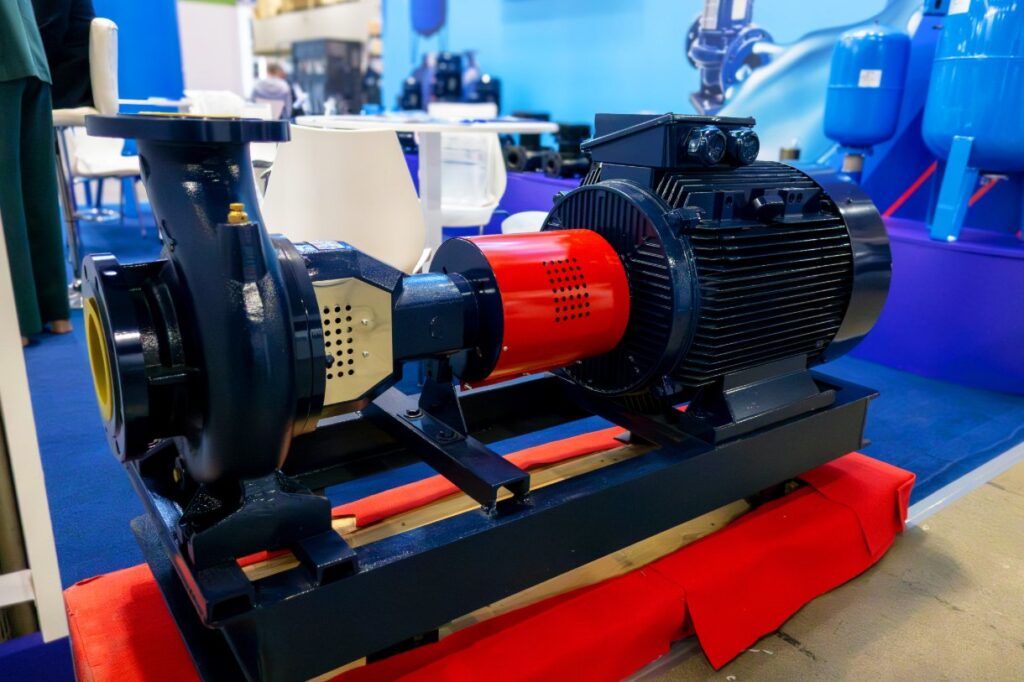

Understanding the key components of a pump curve is essential for selecting the right electric submersible pump for industrial, municipal, or dredging applications. Manufacturers provide these curves to help engineers and procurement teams evaluate performance under different operating conditions. Each part of the curve delivers critical insights that directly affect system efficiency and reliability.
Head vs. Flow (H-Q Curve)
The H-Q curve illustrates how the head (or pressure) produced by an electric submersible pump decreases as the flow rate increases. This curve allows project teams to determine if the pump can meet the required flow for their system. A properly selected electrical submersible pump should operate within its ideal flow range to prevent inefficiency or premature wear.
Efficiency Curve and the Best Efficiency Point (BEP)
The efficiency curve shows how effectively the electric submersible water pump converts input power into fluid movement at varying flow rates. The BEP (Best Efficiency Point) represents the flow and head conditions where the pump performs most efficiently. Operating near this point reduces energy consumption, minimizes maintenance needs, and extends the lifespan of the electric submersible pump.
Power Consumption Curve
This curve demonstrates how the pump’s energy demand changes with flow. For industries managing multiple electrical submersible pumps, understanding power curves helps optimize energy costs and prevent overloading. It is particularly critical for large-scale operations where multiple electric submersible water pumps are running simultaneously.
NPSHr Curve to Avoid Cavitation
The Net Positive Suction Head Required (NPSHr) curve indicates the minimum inlet pressure needed to avoid cavitation, an issue that can cause severe damage to pump components. Ensuring that a system can meet NPSHr requirements protects the electric submersible pump from performance loss and reduces the risk of costly repairs.
How These Curves Determine Operational Performance
When analyzed together, these curves give a comprehensive picture of pump behavior. For example, the intersection of the system curve with the H-Q curve identifies the operating point, while the efficiency and power curves guide cost and energy management. This combined analysis ensures that each electric submersible water pump operates within safe, efficient parameters for long-term performance.
Determining Your System Curve: Step-by-Step
Before selecting an electric submersible pump, it is essential to create a system curve. The system curve represents the relationship between total dynamic head (TDH) and flow rate for the piping network. By following these steps, project teams can accurately match a pump to system requirements.
Step 1: Calculate Static Head
The static head is the vertical distance the fluid must be lifted from the source to the discharge point. This is a critical factor because every electrical submersible pump must overcome this elevation difference to move water effectively.
Step 2: Estimate Friction and Minor Losses
Next, calculate the energy lost due to friction in pipes, valves, and fittings. Friction losses increase with higher flow rates and must be accounted for to prevent underperformance. A properly sized electric submersible water pump that considers these losses ensures consistent flow without overloading the system.
Step 3: Sum Total Dynamic Head (TDH)
Add the static head and friction losses to determine the total dynamic head. TDH is the actual pressure the electric submersible pump must overcome to deliver the required flow. If TDH is underestimated, even a high-capacity electrical submersible pump may fail to meet project demands.
Step 4: Plot the System Curve
Plot the calculated head values against different flow rates to create the system curve. This curve will later be compared to the pump curve to identify the operating point. By doing this, engineers ensure that the selected electric submersible water pump aligns perfectly with real-world system conditions.
Example for Industrial or Municipal Applications
Consider a municipal drainage system that requires continuous dewatering during heavy rainfall. By calculating the static lift from the water source to the outfall, estimating pipe friction from long discharge lines, and summing the TDH, the team can plot a system curve. Matching this curve to a suitable electric submersible pump ensures uninterrupted operation, reduced energy use, and minimized maintenance over the project’s lifecycle.
Matching the Pump Curve with the System Curve

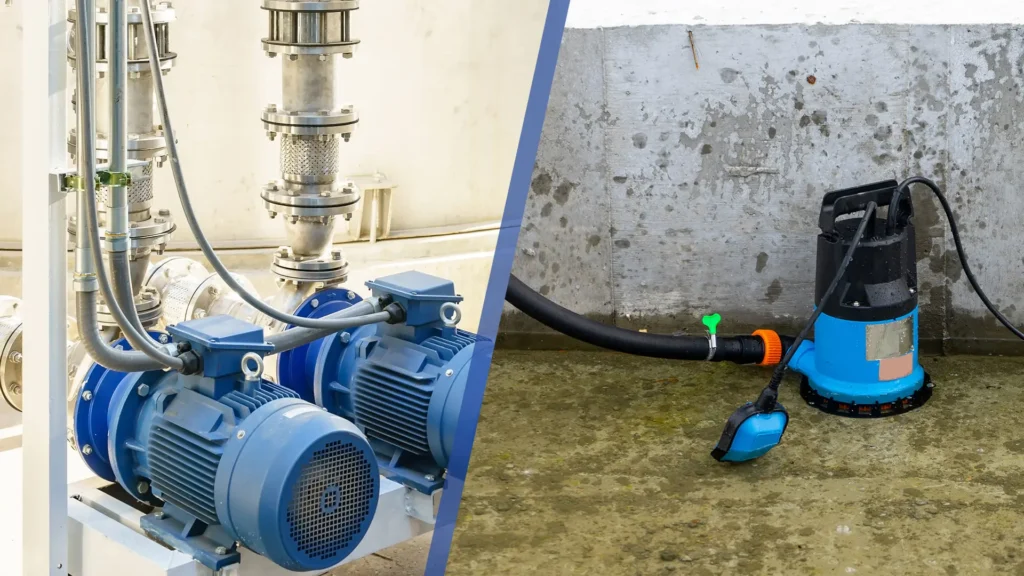

One of the most critical steps in pump selection is identifying where the electric submersible pump curve intersects with the system curve. This intersection, known as the operating point, determines the actual flow and head that the pump will deliver in real-world conditions.
When the system curve and pump curve align correctly, the electric submersible pump operates efficiently, maintaining optimal flow without overloading the motor or wasting energy. Conversely, if there is a mismatch, where the selected electrical submersible pump is either undersized or oversized, several issues can arise:
- Underperformance: The pump may fail to deliver the required flow or pressure, delaying operations.
- Energy Loss: Operating away from the best efficiency point results in higher energy consumption and operating costs.
- Premature Wear: Excessive vibration, cavitation, and heat buildup can shorten the life of the electric submersible water pump.
Practical Example:
Consider a construction site dewatering project where water must be lifted 30 feet vertically through a 200-foot discharge pipe. After calculating the total dynamic head and plotting the system curve, engineers select an electric submersible water pump whose curve intersects at the required flow of 1,500 GPM. If the operating point were above the pump’s natural curve, the electrical submersible pump would run under strain, consuming more power and risking early failure. By correctly matching the curves, the pump will deliver reliable output while optimizing energy use and extending service life.
Reading and Interpreting Electric Submersible Pump Curves
Interpreting a pump curve is an essential skill for procurement teams, project engineers, and operations managers. Manufacturer-provided pump curves for an electric submersible pump contain the data needed to ensure the pump will meet project requirements without unnecessary risk or cost.
Step 1: Review the H-Q Curve (Head vs. Flow)
The H-Q curve is the foundation of pump selection. Begin by identifying the flow rate your system requires and locating the corresponding head on the electric submersible pump curve. This shows the exact operating range and confirms that the pump can meet project demands.
Step 2: Locate the Efficiency Curve
Next, examine the efficiency curve, which typically overlays the H-Q curve. The Best Efficiency Point (BEP) indicates where the electric submersible water pump operates most cost-effectively. Selecting a pump to run near this point reduces energy usage and mechanical stress.
Step 3: Check Power and NPSHr Curves
Review the power consumption curve to confirm the motor can handle the load under expected operating conditions. Then check the NPSHr curve to ensure the system provides adequate suction pressure. This step is crucial to protect the electrical submersible pump from cavitation, which can cause severe damage over time.
Step 4: Validate with Your System Curve
Overlay the system curve onto the pump curve to confirm the operating point. If the intersection falls within the recommended efficiency range, the pump is properly matched. Ignoring this step could lead to selecting an electric submersible water pump that performs below expectations or consumes excessive energy.
For engineering and procurement teams, this step-by-step analysis transforms manufacturer data into actionable decisions. It ensures that the electric submersible pump selected will perform reliably in demanding applications, whether in mining, oil and gas, municipal drainage, or industrial dewatering projects.

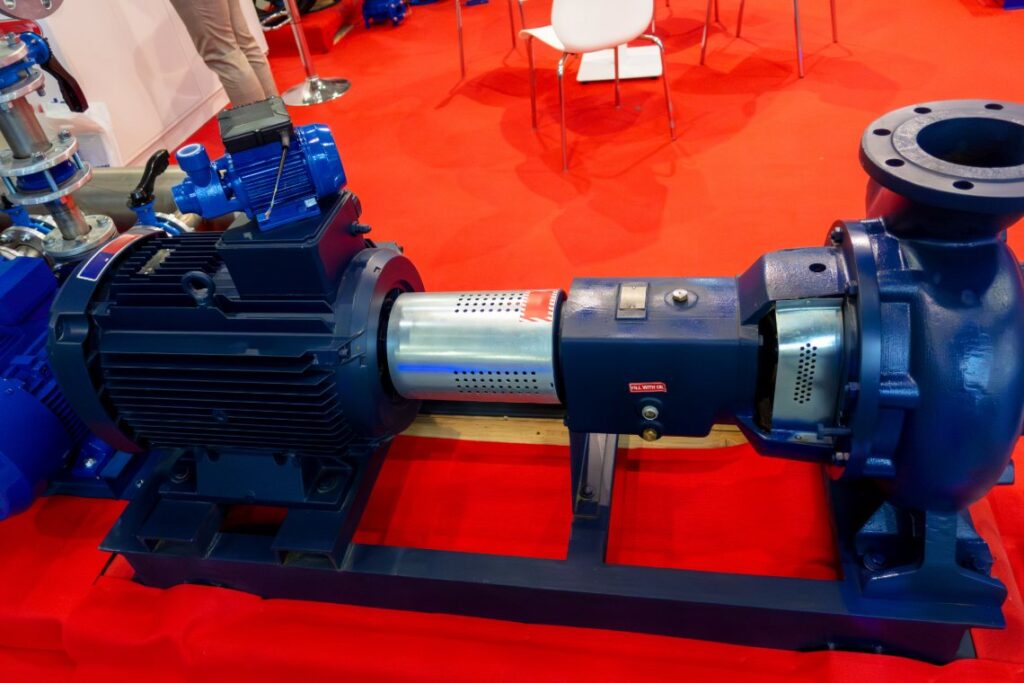

Efficiency, Energy Use, and ROI Considerations
Efficiency plays a pivotal role in the performance and operational costs of an electric submersible pump. The pump efficiency curve illustrates how effectively input energy is converted into fluid movement. For industrial and municipal applications where pumps run for extended hours, even small improvements in efficiency can lead to substantial energy savings and reduced operating costs.
Operating near the Best Efficiency Point (BEP) is essential for maximizing performance. At or near the BEP, the electric submersible pump experiences minimal vibration, lower heat generation, and reduced wear on internal components. This not only enhances energy efficiency but also extends the service life of the electrical submersible pump, minimizing unplanned downtime and repair expenses.
From a financial standpoint, efficiency directly impacts return on investment. A well-selected electric submersible water pump can reduce total lifecycle costs by consuming less power and requiring fewer maintenance interventions. In large-scale operations such as mining dewatering, municipal drainage, or dredging, the cumulative energy savings from a properly sized electric submersible pump can translate into significant cost reductions over the equipment’s lifespan.
When procurement heads and engineering managers evaluate options, prioritizing efficiency ensures that the electric submersible water pump not only meets operational requirements but also contributes to long-term profitability. This ROI-driven approach makes efficient electrical submersible pumps a strategic investment for both government and private-sector projects.
Common Mistakes to Avoid in Pump Curve Analysis
Despite the clear benefits of proper curve analysis, common mistakes can compromise the performance and longevity of an electric submersible pump. Avoiding these errors is crucial for achieving reliable operation and maximizing equipment investment.
Ignoring Friction Losses or Miscalculating TDH
One frequent error is underestimating the total dynamic head (TDH) by neglecting friction and minor losses in the piping system. This can lead to selecting an electrical submersible pump that fails to deliver the required flow or pressure, resulting in inefficient operation and higher energy costs.
Selecting Pumps Without Matching to the System Curve
Choosing a pump based solely on horsepower or flow rating without overlaying the system curve is a costly mistake. If the electric submersible pump operates outside its optimal range, it may experience reduced efficiency, excessive energy consumption, and premature wear.
Overlooking NPSHr and Cavitation Risks
Failing to verify the Net Positive Suction Head Required (NPSHr) can cause cavitation, an issue that erodes internal pump components and leads to early failure. Proper evaluation ensures that the electric submersible water pump operates under safe suction conditions, protecting the investment and maintaining consistent output.
By recognizing and avoiding these pitfalls, project managers and procurement teams can ensure that the electric submersible pump they select provides reliable service, energy efficiency, and long-term cost savings. Whether for municipal drainage, mining operations, or heavy-duty dewatering, careful pump curve analysis is the foundation of operational success.
Real-World Applications and Industry Use Cases
Accurate pump curve analysis is essential across industries where fluid handling and dewatering are critical. Selecting the right electric submersible pump ensures operational efficiency, cost savings, and reduced downtime, particularly in demanding environments.
Mining: Handling Slurry and Dewatering Efficiently
Mining operations rely on high-performance dewatering to keep pits and tunnels clear of water while handling abrasive slurry. A properly selected electric submersible water pump allows continuous fluid removal, preventing delays and minimizing equipment damage. When engineers analyze pump curves to select the correct electrical submersible pump, they can ensure the system operates near its best efficiency point, reducing wear from abrasive particles and lowering maintenance costs.
Oil & Gas: Reliable Operation in Remote or Offshore Sites
In oil and gas applications, reliability is non-negotiable. Facilities often operate in remote or offshore environments where maintenance access is limited. A correctly matched electric submersible pump ensures stable flow rates for drainage, water injection, and fluid transfer tasks. Pump curve analysis helps operators select an electrical submersible pump that can handle fluctuating pressures and variable fluid conditions without risking overloading or inefficiency.
Municipal & Government Projects: Flood Control, Drainage, and Dredging
Municipalities and government agencies depend on electric submersible water pumps for flood control, stormwater drainage, and dredging operations. During heavy rainfall or emergency conditions, a poorly selected pump can result in delayed water removal and increased damage risk. By interpreting pump curves, engineers can choose the electric submersible pump that will handle varying flow conditions efficiently, protecting infrastructure and reducing operational costs for public projects.
In all these scenarios, accurate pump curve analysis translates into real-world benefits: reduced energy use, extended equipment life, and lower total cost of ownership. Industries that adopt a systematic approach to selecting the right electrical submersible pump gain not only operational reliability but also measurable long-term savings.
Conclusion and Expert Recommendation
Pump curve analysis is one of the most effective ways to ensure that an electric submersible pump will meet the performance and efficiency requirements of your project. By studying the head, flow, efficiency, and power curves, decision-makers can select a pump that minimizes energy costs, reduces downtime, and extends equipment life.
For procurement heads, project contractors, and engineering managers, consulting with experts or leveraging professional selection tools can streamline the process. Choosing the right electric submersible water pump from the start avoids costly mistakes, ensures operational reliability, and improves return on investment.For tailored recommendations and expert guidance, explore Dredge Pump Pros’ electric submersible pump solutions to find the right equipment for your industrial, municipal, or dredging projects.
